Containerized PSA nitrogen generator

By adding a container shell to the ordinary PSA nitrogen generator, it not only retains all the advantages of the PSA nitrogen generator, but also has the unique system layout of the container nitrogen generator, which realizes the efficient use of the space inside the container and can adapt to various harsh working environments such as long-term outdoor use.

Classification:

PSA nitrogen generator and purification equipment

keyword： Containerized PSA nitrogen generator

E-mail:

jksales@hzjkkf.com

WhatsAPP:

+8613516775387

Message

Details

1. Patented molecular sieve protection measures to extend the service life of carbon molecular sieves
2. Adopts a containerized shell to adapt to harsh working environments such as outdoors and heavy dust.
3. Configured with DCS remote control system interface, the system operation status can be monitored through the computer.
4. Intelligent interlock nitrogen venting device to ensure the quality of product nitrogen.
5. Perfect process design, energy-saving characteristics, and reduced gas consumption costs.
6. Integrated structure design, transportation, lifting, and installation are very convenient.
7. Adopts safe and reliable control components, stable and reliable operation, and multiple fault alarms.
8. Simple operation, stable operation, high degree of automation, and can achieve unattended operation.

System Flow Chart

Hangzhou Juke Air Separation Equipment Manufacturing Co., Ltd.

Air Compressor System	Compressed Air Purification System	PSA Adsorption System	Nitrogen Buffer System
Includes air compressor Air buffer tank	Includes high-efficiency oil remover, refrigerated dryer, Activated carbon filter, precision filter, etc.	Includes air process storage tank, adsorption tower, pneumatic Valves, PLC controller, compression device, etc.	Includes nitrogen filter, nitrogen buffer tank, Venting system, nitrogen analyzer, flow meter, etc.

Technical indicators
Nitrogen production: 3-3000Nm ³/h
Nitrogen purity: ≥90-99.9999%
Nitrogen pressure: 0.1-0.7MPa (0.8-4.5MPa can be provided according to customer requirements)
Dew point: ≤-40°c~-70°c (under normal pressure)

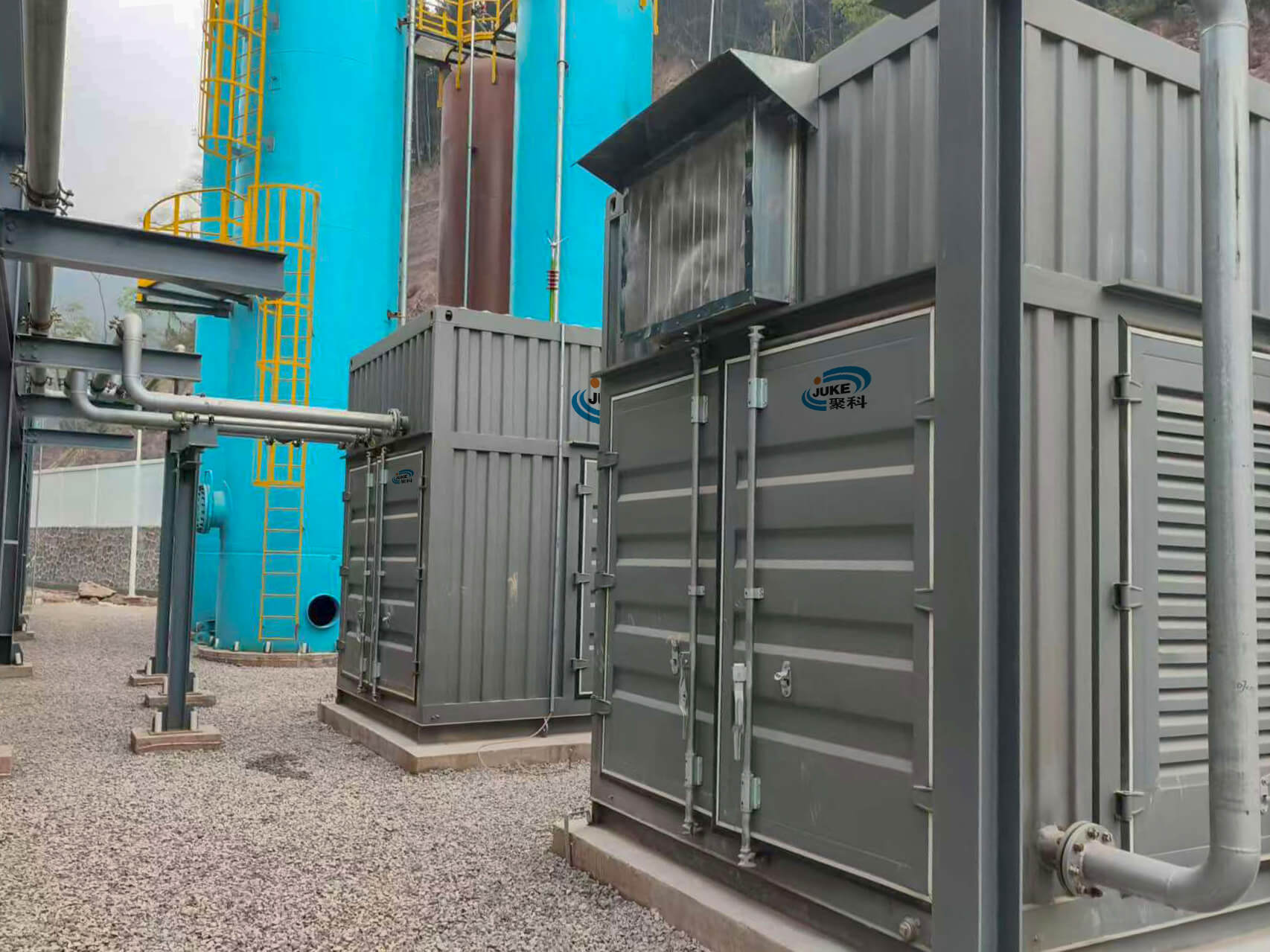

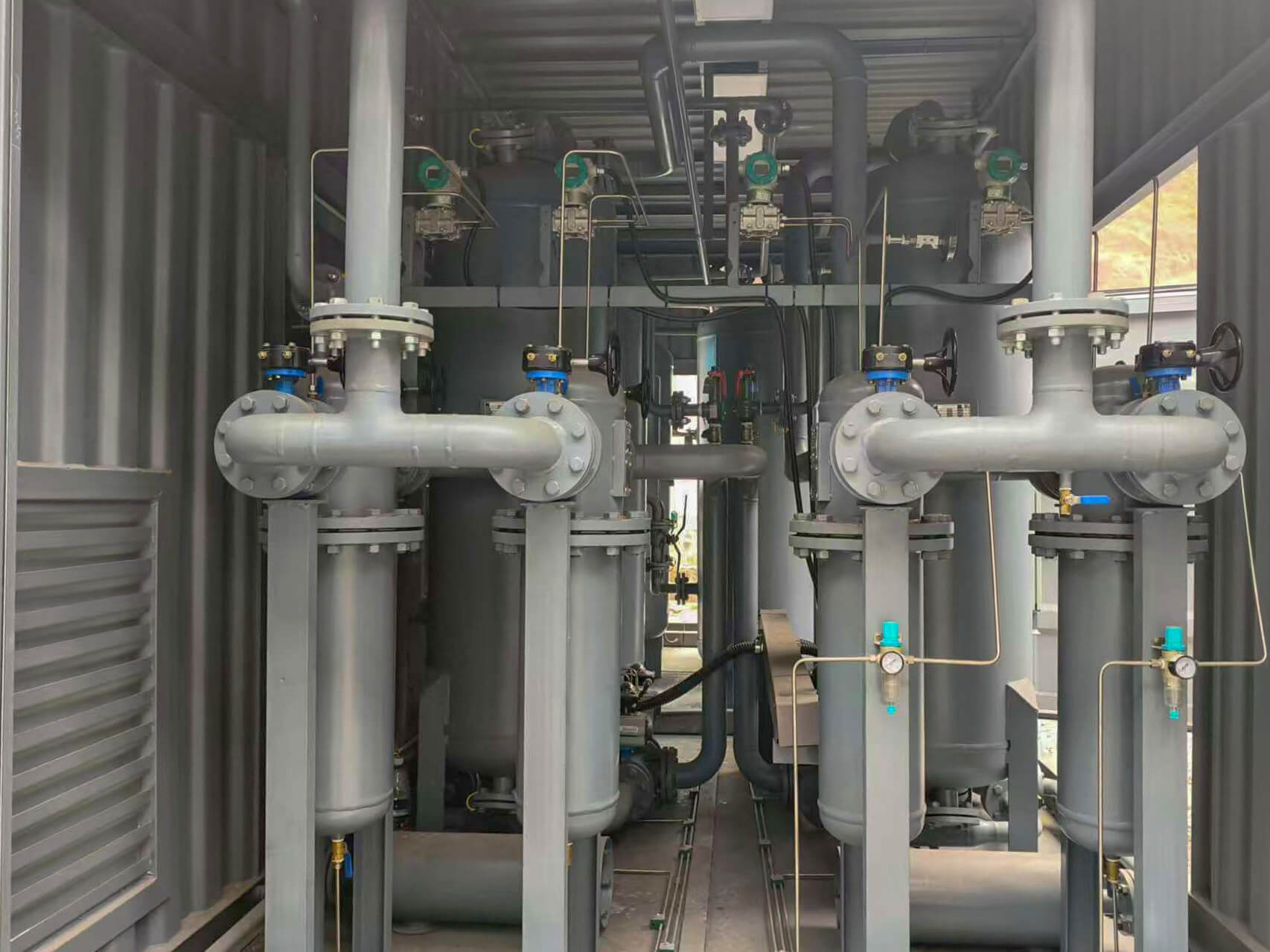

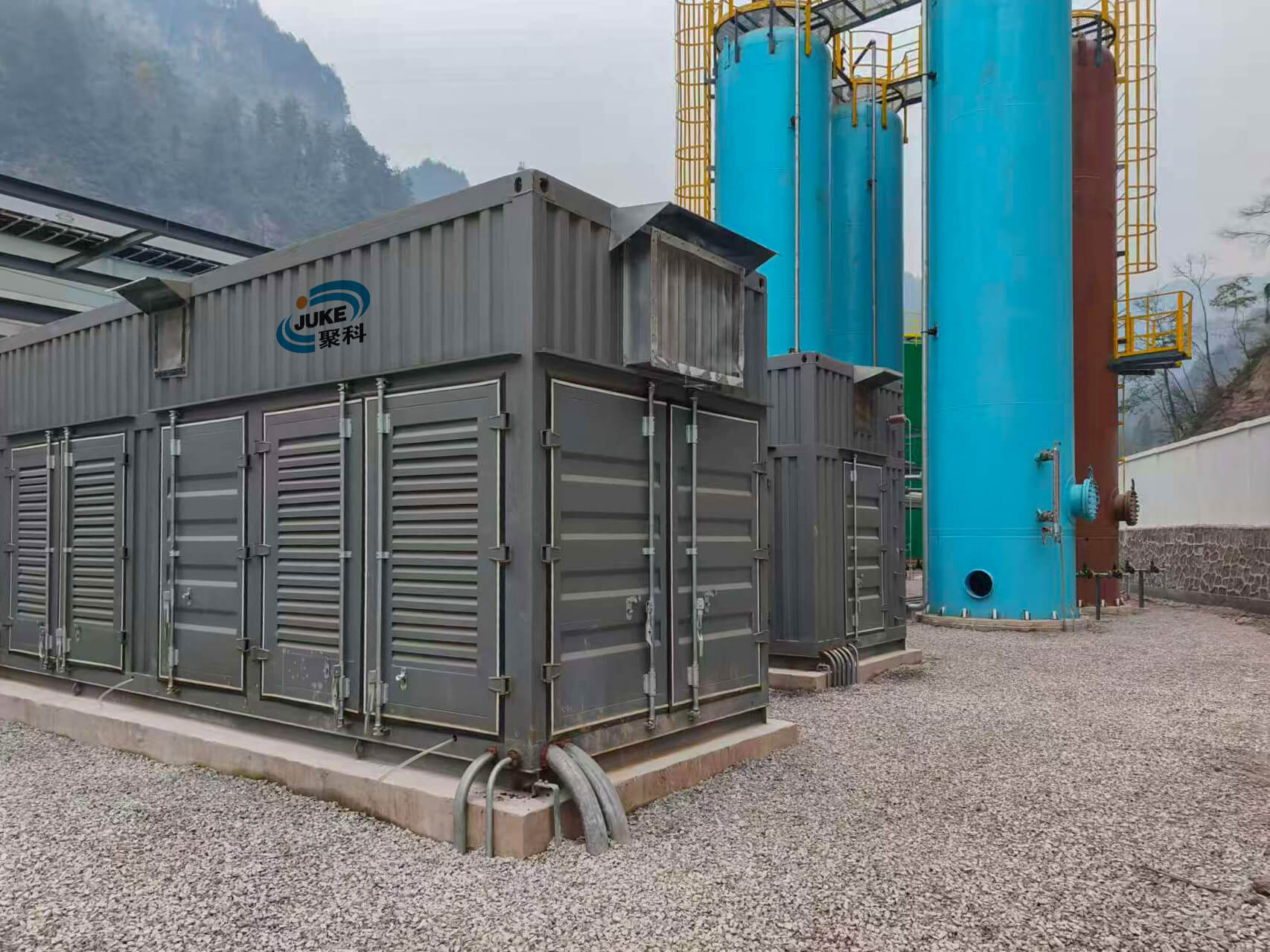

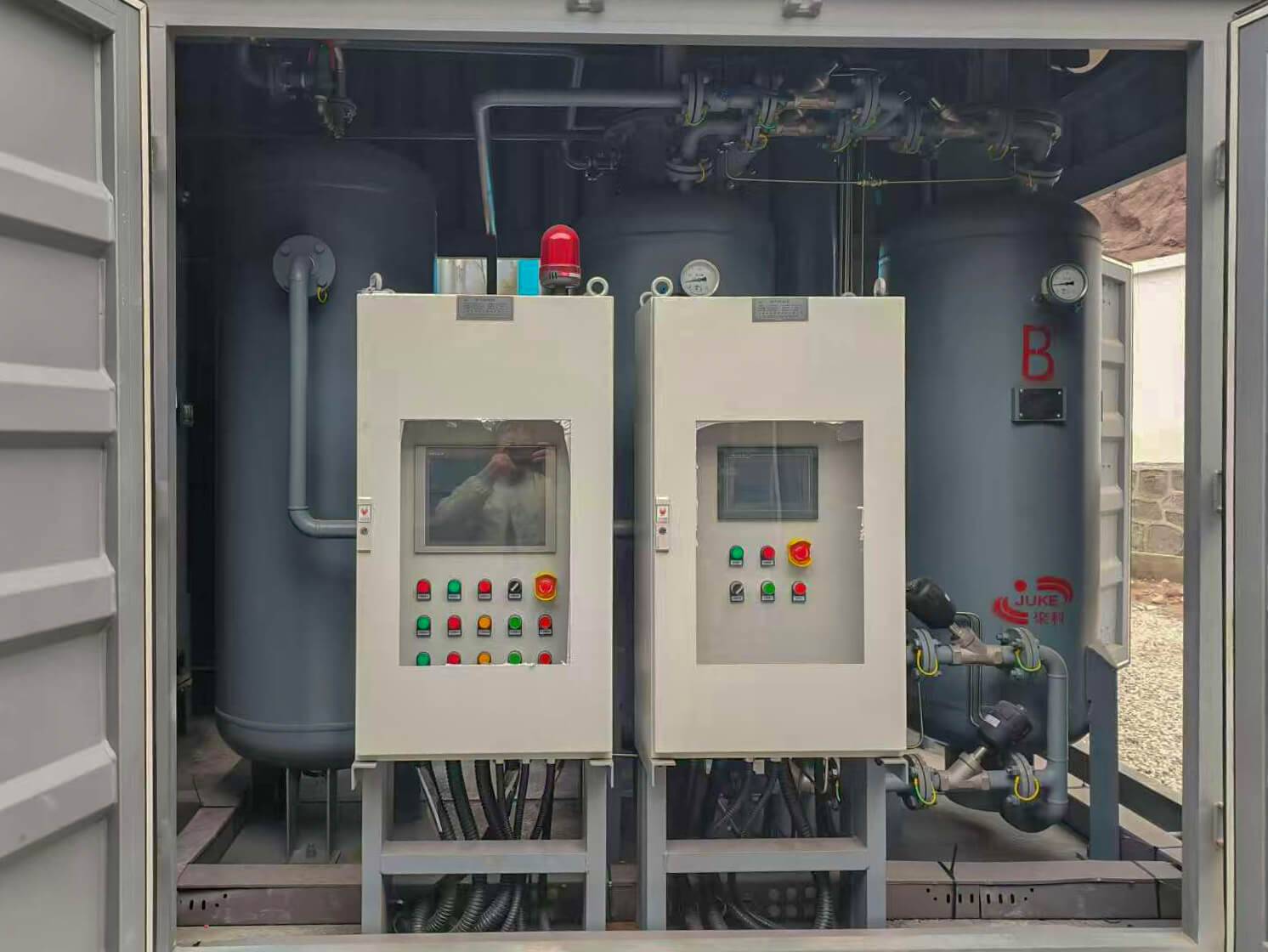

Physical photos
