Understanding PSA Nitrogen Generators: Working Principle and Diverse Applications

In the vast landscape of industrial production, nitrogen plays a crucial role, its presence ubiquitous from food preservation to electronics manufacturing, from chemical synthesis to metal processing. PSA nitrogen generators, as efficient assistants in nitrogen production, are becoming the preferred choice for many companies due to their unique operating principles and wide range of applications. Let's delve into the world of PSA nitrogen generators and explore their intricacies.

Working Principle of PSA Nitrogen Generators

Core Technology - Pressure Swing Adsorption (PSA)

PSA nitrogen generators, also known as Pressure Swing Adsorption nitrogen generators, utilize Pressure Swing Adsorption (PSA) as their core technology. This is a highly efficient gas separation technique that has seen widespread global adoption since its emergence in the late 1960s and early 1970s.

The principle of pressure swing adsorption is based on the difference in the "adsorption" performance of different gas molecules by molecular sieves. In PSA nitrogen generators, carbon molecular sieves are typically used as the adsorbent. A carbon-based adsorbent combining certain characteristics of activated carbon and molecular sieves, it possesses a rich microporous structure with pore sizes ranging from 0.3nm to 1nm. This unique pore structure allows smaller diameter gas molecules, such as oxygen, to diffuse more quickly into the solid phase of the molecular sieve, while larger diameter nitrogen molecules find it relatively more difficult to enter.

Adsorption Process: Achieving Nitrogen-Oxygen Separation

When air is fed into the PSA nitrogen generator, it first undergoes a series of pretreatment steps. The air passes through an air filter to remove dust and mechanical impurities, then enters an air compressor where it is compressed to the required pressure. The compressed air then undergoes rigorous oil, water, and dust removal purification to ensure that the air entering the subsequent adsorption tower is clean, preventing impurities from damaging the adsorbent and thus extending its service life.

The purified compressed air enters the adsorption tower containing the carbon molecular sieve. Inside the adsorption tower, due to pressure, oxygen, carbon dioxide, and water impurities are preferentially adsorbed by the carbon molecular sieve. Nitrogen, due to its larger molecular diameter, has a slower diffusion rate in the carbon molecular sieve and remains largely unadsorbed, thus becoming enriched in the gas phase. As the adsorption process proceeds, the adsorption capacity of the carbon molecular sieve for oxygen and other impurities gradually increases. When a certain level is reached, the gas flowing out of the adsorption tower outlet consists mainly of nitrogen and trace amounts of argon and oxygen, thus achieving preliminary nitrogen-oxygen separation.

Regeneration Process: Recycling the Adsorbent

After a period of time, the adsorption of oxygen and other impurities by the carbon molecular sieve in the adsorption tower reaches equilibrium. At this point, regeneration is necessary to restore its adsorption capacity and enable reuse. Based on the different adsorption capacities of the carbon molecular sieve for adsorbed gases at different pressures, the PSA nitrogen generator reduces the pressure in the adsorption tower to release the adsorption of oxygen and other impurities from the carbon molecular sieve. This process is called regeneration.

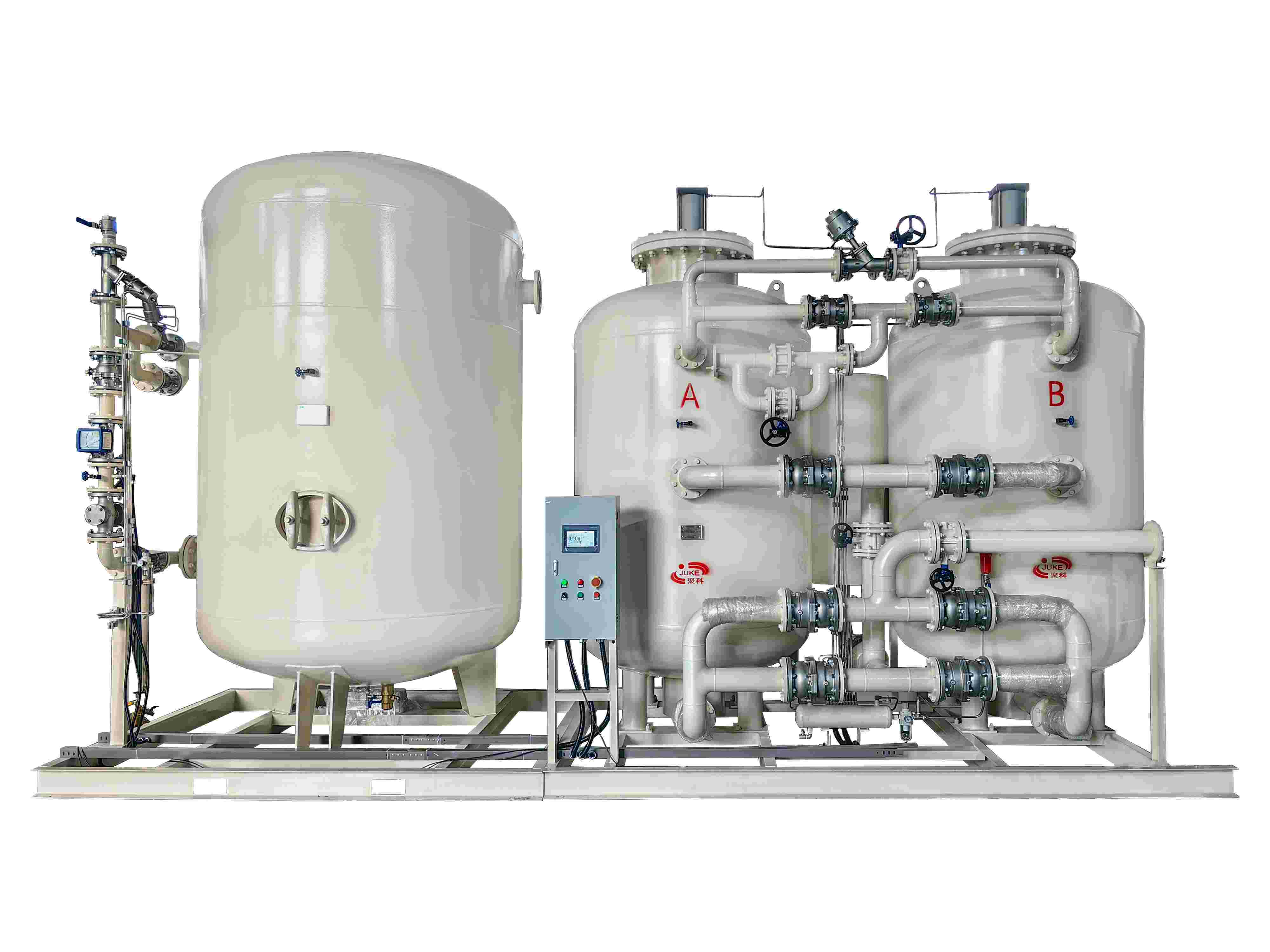

In actual operation, PSA nitrogen generators typically have two adsorption towers. While one tower is producing nitrogen through adsorption, the other tower simultaneously undergoes pressure reduction and desorption regeneration. When the adsorption process in one tower is complete, the system automatically switches, bringing the regenerated adsorption tower online for adsorption, while the tower that just completed adsorption enters the regeneration process. Through this alternating cycle, the PSA nitrogen generator can continuously and stably output nitrogen.

Specifically, the regeneration process generally includes the following steps: First, depressurization rapidly reduces the pressure in the adsorption tower to atmospheric pressure, causing the oxygen and other impurities adsorbed by the carbon molecular sieve to begin desorbing; then, purging introduces some of the already produced pure nitrogen to flush the adsorption tower, completely removing the desorbed impurities from the adsorption tower and releasing them into the atmosphere, thus allowing the carbon molecular sieve to be fully regenerated and prepared for the next round of adsorption.

Advantages of PSA Nitrogen Generators

High Efficiency and Energy Saving

Compared to traditional nitrogen generation methods such as cryogenic air separation, PSA nitrogen generators offer significant energy-saving advantages. Cryogenic air separation requires cooling air to extremely low temperatures to liquefy it, then using the different boiling points of liquid nitrogen and liquid oxygen for fractional distillation separation. This process consumes a large amount of energy for refrigeration and compression. PSA nitrogen generators only need to compress air using an air compressor and utilize the adsorption characteristics of carbon molecular sieves to achieve nitrogen-oxygen separation at room temperature. Energy consumption is mainly concentrated in the operation of the air compressor, significantly reducing energy consumption. Statistics show that in medium and small-scale nitrogen production, the energy consumption of PSA nitrogen generators can be reduced by 30% - 50% compared to cryogenic air separation.

Rapid Gas Production

PSA nitrogen generators have a very fast start-up speed, generally producing qualified nitrogen within 15-30 minutes to quickly meet production needs. This is particularly important for companies with high requirements for the timeliness of nitrogen supply, such as electronics manufacturers. In chip production, once the production line starts, a stable nitrogen supply is immediately needed to ensure smooth operation. In contrast, the start-up process of cryogenic air separation equipment is more complex, requiring a longer time to reach the operating temperature and pressure conditions, with gas production typically taking 12-24 hours.

Easy Operation

PSA nitrogen generators use advanced automated control systems, typically controlled by imported PLCs (Programmable Logic Controllers), enabling fully automated operation. Operators only need to perform simple parameter settings before starting the equipment, such as nitrogen purity, flow rate, and pressure, and the equipment automatically completes a series of operations such as air compression, purification, adsorption, regeneration, and nitrogen output according to the preset program. The equipment is also equipped with a complete monitoring system that displays in real-time parameters such as nitrogen flow rate, pressure, and purity, as well as the operating status of various equipment components. In case of any abnormality, the system immediately issues an alarm signal and takes corresponding protective measures, such as automatic shutdown and cutting off the gas source, to ensure safe operation. This highly automated design makes the operation and maintenance of PSA nitrogen generators very simple, allowing even non-professionals to quickly master the operation methods, greatly reducing labor costs and operational risks for enterprises.

High Flexibility

The nitrogen gas production and purity of PSA nitrogen generators can be flexibly adjusted according to the actual needs of users. Within a certain range, users can easily change the nitrogen gas production and purity by adjusting the operating parameters of the equipment, such as adsorption time and pressure. For example, when a company's production scale expands or process requirements improve, and more nitrogen gas or higher purity nitrogen gas is needed, only simple parameter adjustments need to be made to the PSA nitrogen generator, without the need for large-scale modifications or replacements of the equipment. In addition, the PSA nitrogen generator has a compact structure and small footprint, which is highly practical for companies with limited space. At the same time, the equipment can also be customized according to the user's on-site conditions, such as using a skid-mounted structure for easy installation and movement, to better adapt to different production environments.

Application Scenarios of PSA Nitrogen Generators

Food and Beverage Industry: Protecting Flavor and Freshness

In the food and beverage industry, nitrogen gas is widely used in food preservation, packaging, and beverage production. As an inert gas, nitrogen gas effectively isolates oxygen, preventing food oxidation and spoilage, microbial growth, and extending the shelf life of food. At the same time, nitrogen gas can also maintain the color, taste, and nutritional components of food, ensuring that consumers can enjoy fresh and delicious food.

In food packaging, PSA nitrogen generators can provide on-site nitrogen generation solutions for food companies. By filling nitrogen gas into food packaging bags, a low-oxygen or oxygen-free environment is created, inhibiting the oxidation of fats and the growth of microorganisms in food, thereby extending the shelf life. For example, potato chips, nuts, and other leisure foods usually use nitrogen-filled packaging, which not only prevents food from becoming damp, soft, and changing flavor, but also provides a buffering effect, reducing damage during transportation and storage. In beverage production, nitrogen gas also plays an important role. Some high-end beers and coffees use nitrogen injection technology to create a delicate and rich foam, enhancing the taste and drinking experience. In addition, using nitrogen gas to protect storage tanks and pipelines during beverage storage and transportation can effectively prevent the oxidation of components in the beverage, ensuring product quality stability.

Electronics and Semiconductor Industry: Ensuring Reliability in Precision Manufacturing

The electronics and semiconductor industry has extremely stringent requirements for the production environment, and nitrogen gas plays an indispensable role in this industry. In precision processes such as chip manufacturing and semiconductor packaging, high-purity nitrogen gas is needed to create a clean, oxygen-free environment to ensure product quality and performance.

In chip manufacturing, many process steps need to be carried out under nitrogen protection, such as lithography, etching, and ion implantation. Nitrogen gas can prevent the oxidation of the chip surface and avoid the introduction of impurities, thereby improving the yield and performance stability of the chip. For example, in the lithography process, photoresist needs to be evenly coated on the surface of the silicon wafer, and then pattern transfer is performed through ultraviolet irradiation. If oxygen or other impurities are present in the environment, the photoresist may undergo oxidation reactions, affecting the accuracy and quality of the pattern. In a nitrogen environment, this can be effectively avoided, ensuring the smooth progress of the lithography process. In semiconductor packaging, nitrogen gas also plays an important role. During packaging, filling the packaging cavity with nitrogen gas can remove air and moisture, preventing chip pin oxidation and corrosion, and improving the reliability and sealing of the packaging. In addition, nitrogen gas can also be used for cleaning and purging electronic components, removing surface dust and impurities to ensure that the performance of electronic components is not affected.

Chemical Industry: Promoting Safe and Efficient Production

The chemical industry involves many complex chemical reaction processes, and many reactions have strict requirements for the environmental atmosphere. Nitrogen gas, as an inert gas, is widely used in displacement, protection, and purging in chemical production, effectively improving the safety and product quality of the production process.

During the startup, shutdown, and maintenance of chemical equipment, nitrogen gas is used to displace equipment and pipelines, removing combustible gases, toxic gases, etc., to prevent explosions and poisoning during subsequent operations. For example, in the refining units of petrochemical companies, when the unit needs to be overhauled or modified, the oil and oil gas in the unit must first be displaced by nitrogen gas to ensure that the concentration of combustible gas in the unit is below the lower explosion limit before operations such as hot work can be performed. In some chemical production processes, in order to prevent reactants or products from reacting with oxygen in the air, nitrogen gas needs to be introduced into the reaction system for protection. For example, in some organic synthesis reactions, the reactants are very sensitive to oxygen and are prone to oxidation reactions, leading to a decrease in product quality or reaction failure. At this time, by continuously introducing nitrogen gas into the reactor to create an oxygen-free environment, the smooth progress of the reaction can be ensured, improving the yield and purity of the product. In addition, nitrogen gas can also be used for purging in the transportation and storage of chemical products, preventing the oxidation and polymerization of residual materials in pipelines and storage tanks, ensuring the stability of product quality.

Pharmaceutical Industry: Ensuring Drug Quality and Safety

The pharmaceutical industry has extremely high requirements for product quality and safety, and nitrogen gas is widely used in drug production, packaging, and storage. In drug production, many process steps need to be carried out in a sterile, oxygen-free environment to prevent drugs from being contaminated by microorganisms and oxidation.

In drug packaging, nitrogen gas is widely used in nitrogen-filled packaging of drugs. By filling nitrogen gas into drug packaging containers, such as glass bottles and plastic bags, air can be removed, reducing the content of oxygen and moisture, inhibiting the oxidation of drugs and the growth of microorganisms, and extending the shelf life of drugs. For example, some easily oxidized drugs, such as vitamin C and adrenaline, usually use nitrogen-filled packaging to ensure the quality stability of the drugs. In drug storage, nitrogen gas can also be used to protect warehouses and storage tanks, preventing drugs from being oxidized and contaminated by microorganisms during storage. In addition, in some pharmaceutical production processes, such as freeze-drying and spray drying, nitrogen gas can also be used as a protective gas to prevent drugs from being oxidized or degraded during drying.

Metal Processing Industry: Improving Metal Properties and Processing Quality

In the metal processing industry, nitrogen gas plays an important role in metal heat treatment, welding, and powder metallurgy. In metal heat treatment, nitrogen gas can be used as a protective gas to prevent the oxidation and decarburization of metals during heating, thereby ensuring the performance and surface quality of the metal.

For example, in the heat treatment processes of steel, such as annealing, quenching, and tempering, placing the metal workpiece in a nitrogen protective atmosphere during heating and cooling can prevent the formation of oxide scales on the metal surface, reduce metal loss, and simultaneously improve the metal's hardness, strength, and toughness. In metal welding, nitrogen can be used to protect the welding area, preventing oxygen and nitrogen in the air from reacting with the welding metal, producing defects such as pores and cracks, and improving welding quality. Nitrogen protection welding is widely used, especially in high-precision, high-quality welding processes such as stainless steel welding and aluminum alloy welding. In powder metallurgy processes, nitrogen can be used to create a protective atmosphere during the preparation of metal powders and the sintering process. By preparing and sintering powders in a nitrogen environment, metal powder oxidation can be prevented, ensuring powder purity and performance, while also improving the density and strength of the sintered body and improving product quality.

PSA nitrogen generators, with their unique operating principles and numerous advantages, demonstrate strong application value in numerous industries. With continuous technological advancements and industrial development, the performance of PSA nitrogen generators will continue to improve, and their application fields will further expand. They will continue to provide efficient, stable, and reliable nitrogen supply for various industries, helping companies improve production efficiency, reduce costs, and enhance product quality, playing an even more important role in industrial production. If you are interested in PSA nitrogen generators or face challenges related to nitrogen supply in production, please feel free to contact us. We will be happy to provide you with professional solutions.
